Description

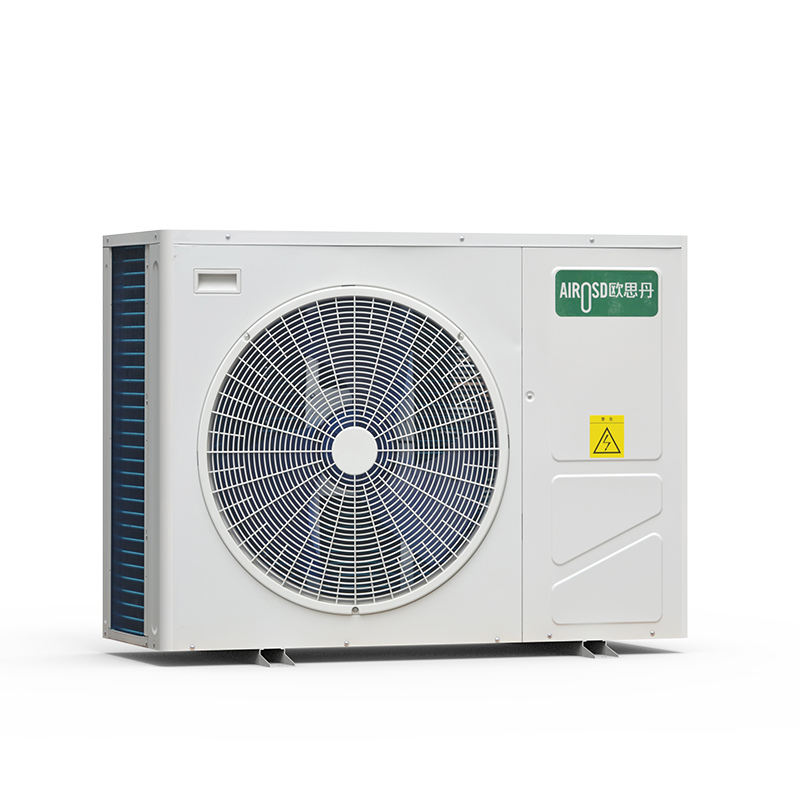

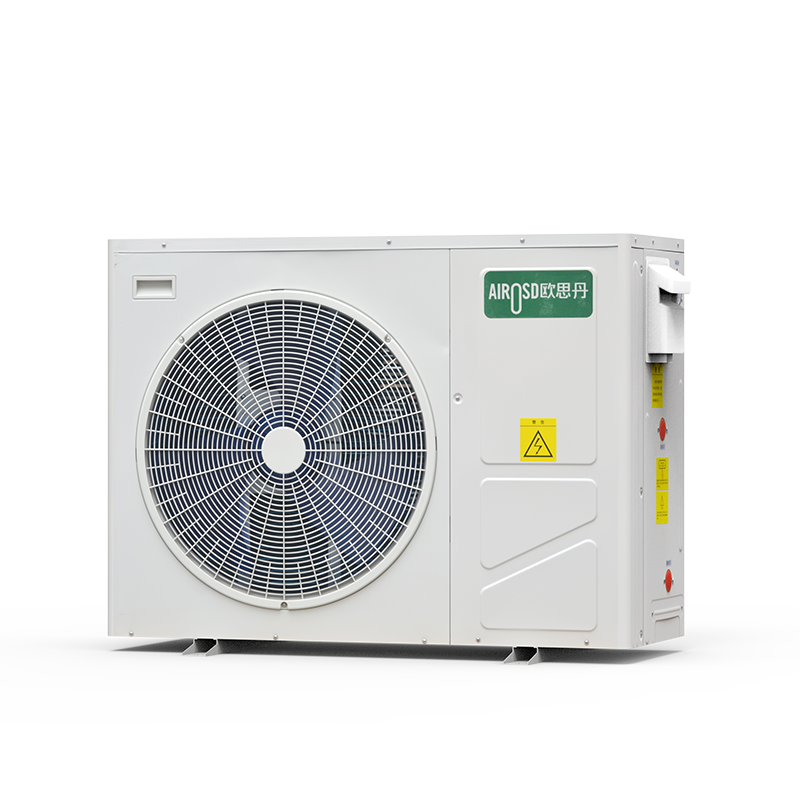

The Keymark BAFA R32 9KW Heating Cooling DHW Heat Pump is a versatile and efficient solution designed to provide year-round comfort for residential spaces. Heating Cooling DHW Heat Pump's advanced system offers integrated heating, cooling, and domestic hot water (DHW) capabilities, Heating Cooling DHW Heat Pump making it an all-in-one solution for modern homes. By utilizing the eco-friendly R32 refrigerant, Heating Cooling DHW Heat Pump ensures high performance with a reduced environmental impact, offering an energy-efficient alternative to traditional heating and cooling systems.
The Keymark BAFA R32 system functions as a heat pump with central air, providing comprehensive temperature control throughout your home. This integration allows the system to distribute conditioned air evenly across all rooms, ensuring that every part of your house stays comfortable. Unlike traditional central air systems that rely solely on electric or gas heating, this heat pump offers a more energy-efficient solution by leveraging ambient air to regulate indoor temperatures, thereby reducing energy consumption and lowering utility costs.
For homeowners seeking targeted climate control, single room ac and heater can also operate as a single room AC heater. Whether you need to heat or cool a specific area of your home, such as a bedroom, living room, or home office, the system provides precise temperature management. single room ac and heater flexibility makes single room ac and heater ideal for homes with varying climate needs in different rooms, offering the ability to tailor the temperature to suit specific comfort levels without the need for separate units.
Built with high-quality components, this heat pump is designed for durability and long-term reliability. Its robust construction ensures that the system can withstand the demands of continuous operation, providing homeowners with a dependable solution for years to come. The system’s low maintenance requirements and long lifespan make it a cost-effective investment, delivering consistent comfort without frequent repairs or replacements.
The Keymark BAFA R32 9KW Heating Cooling DHW Heat Pump is designed for easy installation and user-friendly operation. Its compact size and flexible configuration options allow it to be installed in a variety of settings, from small apartments to large homes. The intuitive control panel makes it simple to set and adjust temperatures, while smart features like programmable settings and remote control options add convenience to your daily life.
Parameter
| QBKFXFC-009SRI | |||
| Heating Capacity (A7W35) | 9 kW | COP | 4.46 |
| Cooling capacity (A35W7) | 6.5 kW | EER | 2.85 |
| DHW (A20W55) | 10 kW | COP | 4.3 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R32 | Max Input Power | 4.8 |
| Power Supply | 220-240V～ / 50Hz | Max Current （A） | 20 |
| Water flow (m³/h) | 1.72 | Water Port Size | DN25 |
| Pressure Loss（kPa） | 25 | Noise (dB（A)) | ≤55 |
| Dimension (W×D×H) | 1075*480*805 mm | Packing Dimension (W×D×H) | 1190*560*945 mm |
| N.W.( kg) | 80 | G.W.( kg) | 98 |
| Note: Due to product improvement, above datas are subject to change without prior notice, please take the name plate as standard. | |||
Details
Heating&Cooling&DHW 3 In 1
Cooling in summer, heating in winter, optional wind panel, floor heating, domestic hot water, etc. at the end,convenient and flexible electric heat pump and air conditioning for higher efficient house heating/cooling and domestic hot water.
High Efficiency A+++ Energy Level
Targeting the European market, 3VF+ Series Air to Water Heat Pump is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does
3VF+ series use R32 Refrigerant and full DC Inverter EVI technology, but also be rated with A+++ energy label. With top energy rating A+++ , the electric heat pump and air conditioning is currently most energy efficient and can greatly reduce
energy bills for customers.
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, electric heat pump and air conditioning can realize 20%-120% stepless capacity adjustment. During operation, the speed of the compressor and fan can be automatically and
intelligently adjusted according to the actual load demand of the user, so as to reduce the energy consumption of the compressor and fan , so that the electric heat pump and air conditioning operates at the optimal level and achieves the energy
saving purpose of on-demand output
R32 refrigerant, energy saving and environmental protection
R32 contributes greatly to the environment protection since R32 has a low GWP of 675 which is just 32% of R410A. In the electric heat pump and air conditioning system, with lower liquid density, the charge amount
of R32 is less than that of R410A, which brings in higher economic efficiency. The heat needed to evaporate R32 is greater than that of R410A so that the required mass flow rate per unit is smaller and the COP
is higher. We not only take care of your family but also contribute to protecting the earth.
40dB(A) Quiet Running
Thanks to the unique sound proof internal structure, the sound pressure of this type of Air to Water Heat Pump is kept to as low as 40dB(A) at 1 meter distance (Min. Flow).
Stable Running at -35°C Ambient Temperature
Under low ambient Temperature, the performance of normal heat pumps will be limited. First, the heating ability, the lower the ambient temperature, the weaker the heating ability. Second, reliability,
low temperature environment will affect the stability of the machine and operation reliability. Third, the operating width and safety range will affect the performance of the heat pump. Thanks to
the unique Inverter EVI technology, 3VF+ can operate efficiently at -35°C, maintain high COP and reliable stability.
Controller with WIFI to realize APP remote setting. Convenient for installation and maintenance.Independent intelligent remote control, online self-diagnosis function
- Remotely view the temperature and water level of the water tank and other parameter curve records and query, and control the water level and water temperature at the same time;
- Remote control of pipeline circulation, return water, antifreeze, defrost, etc.;
- Remotely monitor the working status, current, voltage, protection status and working mode of the pump set;
- Remotely switch the control mode of the water pump, and remotely/manually/automatically control the start and stop of the pump group;
- Fault information early warning and display, support various monitoring information, control information, alarm information, operation information storage and historical record query.
Automatic defrost mode + anti-secondary long ice technology.
The outdoor unit adopts outdoor temperature sensor and heat exchanger temperature sensor to perform variable-parameter defrosting and accurately grasp the defrosting timing, which effectively solves the problem of
"no defrosting when there is frost, but defrosting without frost", and the amount of frost per unit time is significantly reduced. Only 1/3 of the normal defrost mode.
At the same time, with the unique anti-secondary long-ice technology of AIROSD, it can ensure that there is no frost at the bottom of the outdoor heat exchanger during heating in winter, and at the same time, the ice-water
mixture left along the fins can be fully heated to a liquid state during defrosting. It is drained through the bottom drain hole to avoid poor heating effect caused by the accumulation of frost at the bottom.
