The Splits Heat Pumps for Home Heating offer a state-of-the-art solution designed to provide efficient heating and cooling throughout the year. These systems are ideal for homeowners looking to combine the benefits of heat pump technology with central air capabilities, ensuring consistent comfort in every season. Whether you’re seeking to improve your home's central heating with a heat pump or need a reliable system to manage both heating and cooling, these heat pumps deliver exceptional performance and energy savings.
By combining the efficiency of a heat pump with the broad reach of central air, this system provides comprehensive climate control for your entire home. In the winter, the heat pump efficiently draws heat from the outside air and distributes it evenly through your home, providing warmth without the high energy costs of traditional heating systems. In the summer, the system reverses its operation, effectively cooling your home by removing excess heat and maintaining a comfortable indoor environment.
The Splits Heat Pumps for Home Heating are designed to maximize energy efficiency by utilizing the natural thermal energy found in the air. This not only reduces the reliance on fossil fuels but also significantly lowers your energy bills.
The system’s heat pump heating and cooling system is designed to adapt to varying temperatures, providing consistent warmth during cold months and effective cooling during hot weather. This dual functionality eliminates the need for separate heating and air conditioning systems, simplifying your home’s climate control and reducing installation and maintenance costs.
In addition to providing indoor comfort, the Splits Heat Pumps for Home Heating can also be used to heat your pool water, extending your swimming season and enhancing your overall home experience. The system’s ability to efficiently transfer heat makes it an excellent option for pool water heat, ensuring that your pool remains at a comfortable temperature even during cooler months. This feature adds versatility to the heat pump, allowing you to enjoy both a warm home and a warm pool without the need for separate heating systems.
These systems are built to provide comprehensive climate control, ensuring that your home remains comfortable in all weather conditions.

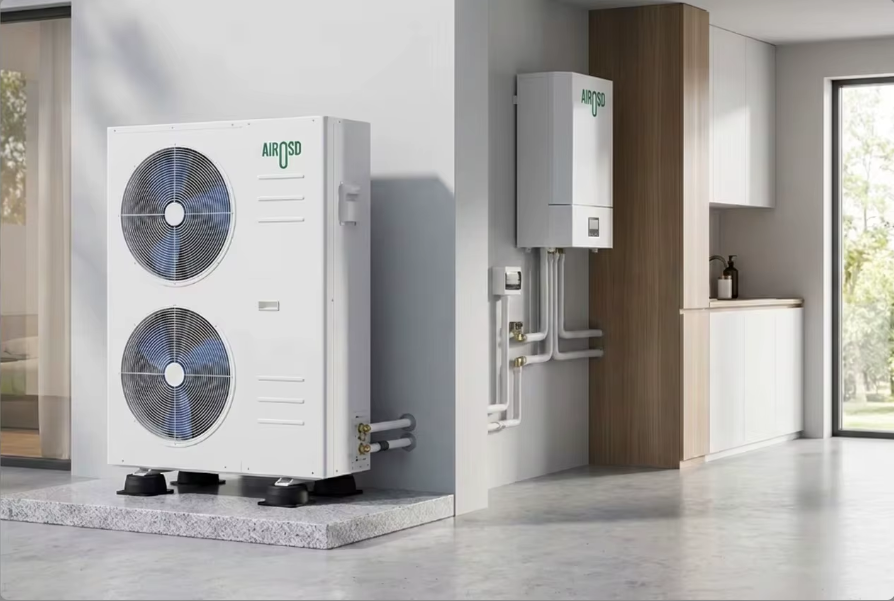

Installing the Splits Heat Pumps for Home Heating is a straightforward process, thanks to the system’s modular design. The outdoor unit, which extracts heat from the air, can be placed in a convenient location outside your home, while the indoor unit distributes the conditioned air throughout your living spaces.
Investing in Splits Heat Pumps for Home Heating can lead to substantial long-term energy savings. These systems are designed to operate with high efficiency, meaning they use less energy to achieve the desired temperature compared to traditional heating and cooling systems. This reduction in energy consumption translates directly to lower utility bills, making the system a cost-effective choice for homeowners looking to save money over time.
parameter
| QBKFXFC-030SRII | |||
| Heating Capacity (A7W35) | 30 kW | COP | 2.95 |
| Cooling capacity (A35W7) | 28 kW | EER | 3.07 |
| DHW | 35 kW | COP | 4.3 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R32 | ERP(55℃) | A++ |
| Power Supply | 380V-415V～3N/50Hz | Operating Current （A） | 27 |
| Water Yield (L/H) | 753 | Heating capacity range | 12.5～35.0 |
| Ambient Temp. Range（℃） | -35～45 | Max Input Power | 17.4 |
| Packing Dimension (W×D×H) Outdoor unit | 1300*520*1760 mm | Packing Dimension (W×D×H) indoor unit | 770*530*400 mm |
| G.W.( kg) Outdoor unit | 190 | G.W.( kg) indoor unit | 38.5 |
Details
Heating&Cooling&DHW 3 In 1
Cooling in summer, heating in winter, optional wind panel, floor heating, domestic hot water, etc. at the end, convenient andflexible R32 full DC inverter EVI heat pump for higher efficient house heating/cooling and domestic hot water.
High Efficiency A+++ Energy Level
Targeting the European market, 3VF+ Series Air to Water Heat Pump is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness.
Not only does 3VF+series use R32 Refrigerant and full DC Inverter EVI technology, but also be rated with A+++ energy label. With top energyrating A+++ , the unit is currently most energy efficient and can greatly reduce energy
bills for customers.
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment. During operation, the speed of the compressor and fan can be automatically and intelligently adjusted according to
the actual load demand of the user, so as to reduce the energy consumption of the compressor and fan , so that the unit operates at the optionmal level and achieves the energy saving purpose of on-demand output.
R32 refrigerant, energy saving and environmental protection
R32 contributes greatly to the environment protection since R32 has a low GWP of 675 which is just 32% of R410A. In the same heat pump system, with lower liquid density, the charge amount of R32
is less than that of R410A, which brings in highereconomic efficiency. The heat needed to evaporate R32 is greater than that of R410A so that the required mass flow rate perunit is smaller and the COP is higher.
We not only take care of your family but also contribute to protecting the earth.
40dB(A) Quiet Running
Thanks to the unique soundproof internal structure, the sound pressure of this type of Air to Water Heat Pump is kept to as lowas 40dB(A) at 1 meter distance (Min. Flow).
Automatic defrost mode + anti-secondary long ice technology
The outdoor unit adopts outdoor temperature sensor and heat exchanger temperature sensor to perform variable-parameterdefrosting and accurately grasp the defrosting timing, which effectively
solves the problem of "no defrosting when there isfrost, but defrosting without frost", and the amount of frost per unit time is significantly reduced. Only 1/3 of the normal defrost mode.
