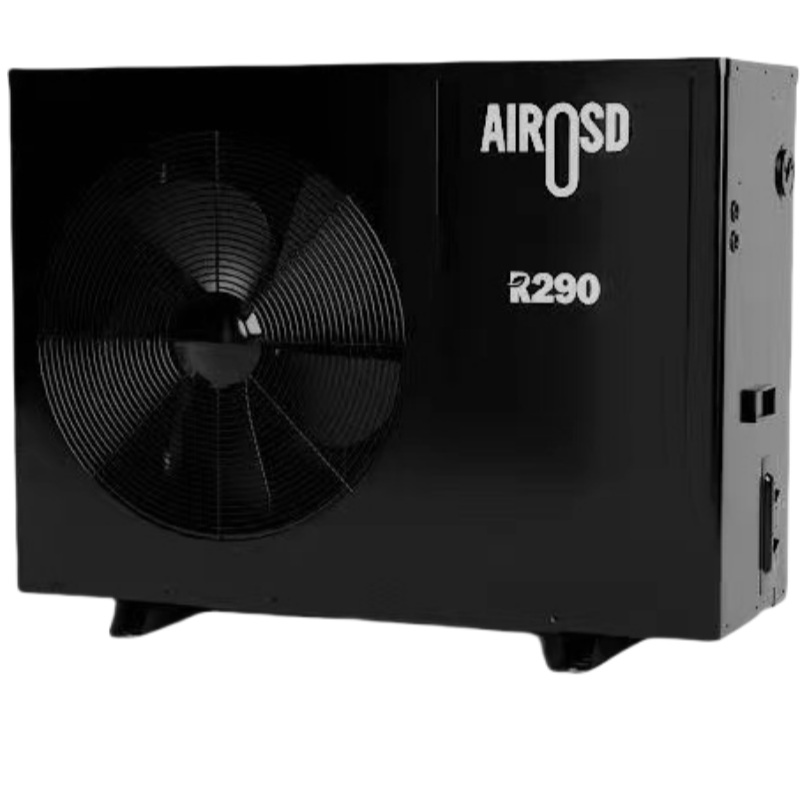

CE R290 16KW Residential Heating Cooling Heat Pump
The CE R290 16KW Residential Heating Cooling Heat Pump is a versatile and efficient solution designed to provide year-round comfort for residential spaces. Combining advanced air source technology with eco-friendly refrigerants,
this heat pump offers both heating and cooling functions and air source heat pump with cooling, making it a comprehensive climate control system for modern homes.
Advanced Air Source Heating and Air Conditioning
This heat pump utilizes cutting-edge air source technology to deliver reliable heating and cooling. By extracting heat from the ambient air, it efficiently warms your home during colder months. Conversely, during the warmer
seasons, the pump operates in cooling mode to provide a refreshing indoor environment. Its dual-function capability ensures that you remain comfortable regardless of the outside weather conditions.
Eco-Friendly R290 Refrigerant
The CE R290 model uses R290 refrigerant, a highly efficient and environmentally friendly alternative to traditional refrigerants. R290, also known as propane, has a low global warming potential (GWP) and provides excellent thermal
performance. This choice of refrigerant not only supports sustainability but also contributes to reduced energy consumption and lower operational costs.
High-Efficiency Air Source Heat and Cooling Pump
With a 16KW capacity, this air source heat pump offers impressive performance for residential heating and cooling needs. It operates with high efficiency, providing effective temperature control while minimizing energy usage.
The advanced design ensures optimal heat transfer and cooling efficiency, making it an economical choice for maintaining a comfortable home environment.
Parameters
| QBKFXFC-016SBI | |||
| Heating Capacity (A7W35) kW | 5.5～15.0 | COP | 4.53～5.25 |
| Cooling capacity (A35W7) kW | 4.5～12.0 | EER | 2.92～3.45 |
| DHW (A20W15-55) kW | 6.5～17.0 | COP | 4.25～4.85 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R290 | Max Input Power | 7.7 |
| Power Supply | 220V-240 / 50Hz | Max Operating Current （A） | 32 |
| Water Yield (m³/h) | 2.58 | Ambient Temp. Range | -30～45 |
| Water Side Pressure Loss（kPa） | 35 | Noise (dB（A)) (1M) | ≤50 |
| Dimension (W×D×H)mm | 1250×536×970 | Packing Dimension (W×D×H) | / |
| N.W.( kg) | 110 | G.W.( kg) | 115 |
| Note： 1. Heating A7W35 condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 30°C, outlet water temperature 35°C; 2. Heating A7W45condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 40°C, outlet water temperature 45°C; 3. Rated cooling condition:(DB/WB)=35°C, inlet water temp. 12°C, outlet water temp. 7°C; 4. DHW Heating capacity conditions : (DB/WB) =20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. | |||
Details
Heating&Cooling&DHW 3 In 1
Cooling in summer, heating in winter, optional wind panel, floor heating, domestic hot water, etc. at the end, convenient and flexible R290 full DC inverter heat pump for higher efficient house heating/cooling and domestic hot water.
High Efficiency A+++ Energy Level
Targeting the European market, 3VF+ Series Air to Water Heat Pump is specially developed with the most cutting-edge heatpump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does 3VF+
series use R290 Refrigerant and full DC Inverter technology, but also be rated with A+++ energy label. With top energy rating A+++ , the unit is currently most energy efficient and can greatly reduce energy bills for customers.
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment. During operation, the speed of the compressor and fan can be automatically and intelligently adjusted according to the actual load demand of the user, so as to reduce the energy consumption of the compressor and fan , so that the unit operates at the optional level and achieves the energy saving purpose of on-demand output.
Automatic defrost mode + anti-secondary long ice technology
The outdoor unit adopts outdoor temperature sensor and heat exchanger temperature sensor to perform variable-parameter defrosting and accurately grasp the defrosting timing, which effectively solves the problem of "no defrosting when there is
frost, but defrosting without frost", and the amount of frost per unit time is significantly reduced. Only 1/3 of the normal defrost mode.At the same time, with the unique anti-secondary long-ice technology of AIROSD,
it can ensure that there is no frost at thebottom of the outdoor heat exchanger during heating in winter, and at the same time, the ice-water mixture left along the finscan be fully heated to a liquid state during defrosting.
It is drained through the bottom drain hole to avoid poor heating effectcaused by the accumulation of frost at the bottom.
Residential Heating Cooling Heat Pump: The Smart Choice for Modern Homes
In today’s pursuit of year-round comfort and high energy efficiency, the Residential Heating Cooling Heat Pump is becoming the core solution for more and more households. This type of air source heating and air conditioning system harnesses free heat energy from the outdoor air, providing families with an economical and eco-friendly solution for both heating and cooling.
Air source heating and cooling technology truly delivers dual functionality in one system. In winter, air source heating and cooling efficiently transfers low-grade heat energy from the outdoor air into the home, ensuring stable and comfortable warmth. In summer, with just a simple mode switch, air source heating and cooling reverses its operation—just like a high-efficiency air conditioner—expelling indoor heat outdoors to bring refreshing coolness. Thanks to this efficient operating principle, the air source heat and cooling pump achieves a much higher COP than traditional electric heaters and air conditioners, significantly reducing household energy bills.
Modern, high-quality air source heat pump with cooling systems are engineered for quiet and stable operation. The air source heat pump with cooling can be easily integrated into existing radiators, fan coil units, or underfloor heating systems, delivering uniform and pleasant room temperatures while avoiding the discomfort caused by direct airflow from traditional air conditioners. With an intelligent control system, the air source heat pump with cooling allows you to precisely manage the temperature in every room, achieving a personalized comfort experience.
Choosing a Residential Heating Cooling Heat Pump means embracing a solution that combines high efficiency (powered by air source heating and cooling), year-round comfort (enabled by the air source heat pump with cooling), and environmental responsibility (the core advantage of the air source heat and cooling pump). The Residential Heating Cooling Heat Pump lays a solid foundation for modern homes, ensuring comfort, economy, and sustainability for years to come.
