Description

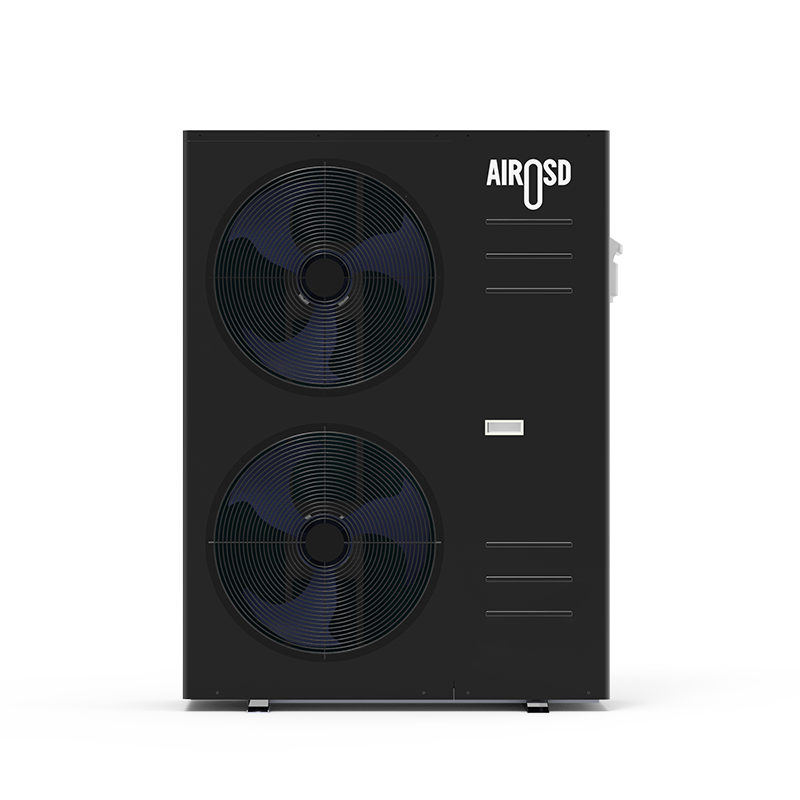

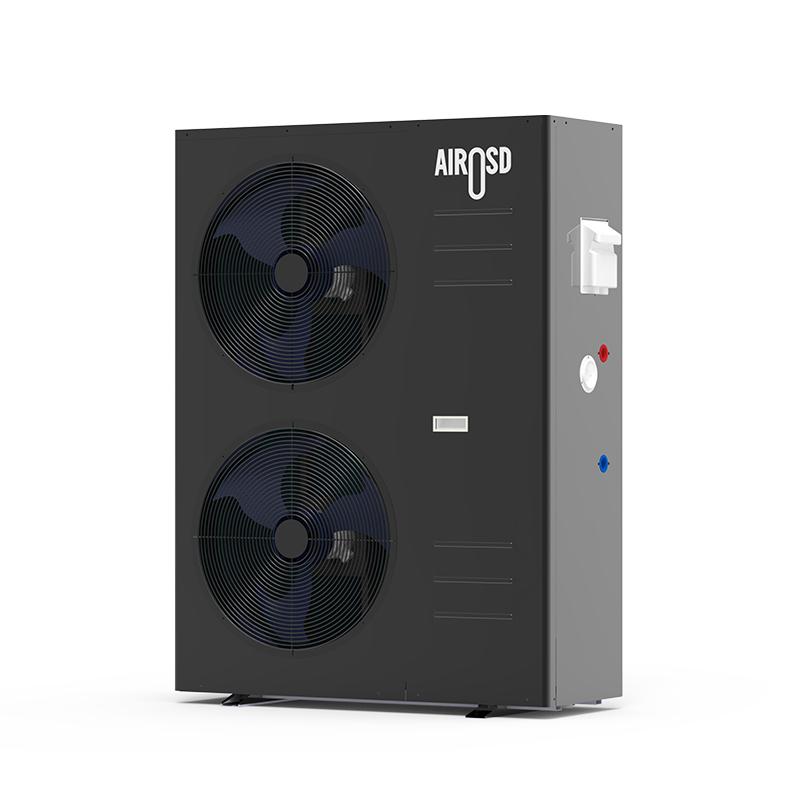

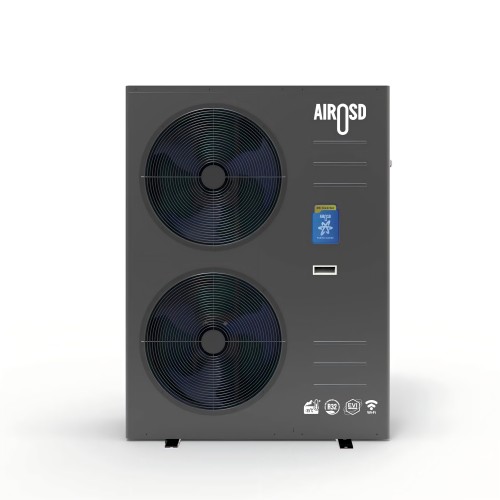

The Keymark BAFA R32 16KW House Heating Cooling Heat Pump is an advanced and energy-efficient solution designed to provide comprehensive climate control for residential homes. This powerful heat pump system is engineered to deliver reliable heating and cooling throughout the year, ensuring a comfortable indoor environment regardless of the season. With its environmentally friendly R32 refrigerant and cutting-edge technology, this heat pump is an ideal choice for homeowners looking to optimize their energy use while maintaining high comfort levels.
This house heating and cooling heat pump offers a versatile solution for maintaining an ideal indoor climate in your home. With a capacity of 16KW, it efficiently handles both heating in the winter and cooling in the summer, making it a comprehensive solution for year-round comfort. The system is designed to adapt to varying weather conditions, ensuring consistent performance and reliable temperature control throughout the home. This versatility makes it an excellent choice for homeowners who want to streamline their HVAC systems into one efficient unit.
The Keymark BAFA R32 16KW heat pump system includes auxiliary heating and cooling features that enhance its overall performance. During extreme weather conditions, the auxiliary functions provide additional support to ensure that the desired indoor temperature is maintained. This feature is particularly beneficial in regions with harsh winters or hot summers, where additional heating or cooling capacity may be required. By seamlessly integrating these auxiliary functions, the system ensures that your home remains comfortable regardless of external temperatures.
This heat pump system is designed to provide efficient air and heat distribution throughout the home, maximizing comfort while minimizing energy consumption. The advanced inverter technology allows the system to adjust its output based on real-time demand, ensuring that energy is used efficiently without compromising on performance. This not only reduces energy bills but also contributes to a more sustainable and environmentally friendly home. The system's efficient air and heat distribution capabilities make it a perfect fit for modern homes that prioritize both comfort and energy efficiency.
The Keymark BAFA R32 16KW heat pump is designed to integrate seamlessly with ducted electric heating and cooling systems, providing comprehensive coverage for your entire home. Whether you are installing the system in a new build or retrofitting it into an existing home, the ducted setup ensures that every room in your house receives consistent and even heating and cooling. This whole-house approach eliminates hot or cold spots and creates a uniformly comfortable environment, making it ideal for homes of all sizes.
One of the standout features of this system is its ability to deliver ducted heat pump air conditioning that operates quietly and discreetly. The indoor and outdoor units are designed to minimize noise, allowing you to enjoy a peaceful indoor environment without the distraction of loud HVAC equipment. This quiet operation is particularly beneficial for bedrooms, living areas, and home offices, where noise levels can significantly impact comfort and productivity. Additionally, the discreet design of the ducted system means that the heat pump can be installed without taking up valuable space or altering the aesthetic of your home.
The use of R32 refrigerant in the Keymark BAFA R32 16KW heat pump system underscores its commitment to environmental responsibility. R32 is a low global warming potential (GWP) refrigerant, making this heat pump a more eco-friendly choice compared to systems using older refrigerants. Combined with its energy-efficient operation, this heat pump not only reduces your carbon footprint but also contributes to significant energy savings over time. Homeowners can feel confident that they are making a sustainable choice that benefits both their wallets and the environment.
The Keymark BAFA R32 16KW House Heating Cooling Heat Pump is equipped with user-friendly controls and advanced features that make it easy to operate and customize according to your preferences. The intuitive control panel allows for easy adjustment of temperature settings, scheduling, and mode selection, giving you complete control over your home’s climate. Advanced features such as automatic defrosting, humidity control, and smart connectivity options enhance the system's functionality, ensuring that it meets the needs of modern homes.
In summary, the Keymark BAFA R32 16KW House Heating Cooling Heat Pump offers a high-performance, energy-efficient, and environmentally friendly solution for whole-house heating and cooling. With its auxiliary heating and cooling capabilities, efficient air and heat distribution, and quiet ducted operation, this system is designed to provide optimal comfort and convenience for homeowners. Whether you're looking to upgrade your existing HVAC system or install a new one, this heat pump delivers reliable, year-round climate control that is both cost-effective and sustainable.
Parameter
| QBKFXFC-016SRI | |||
| Heating Capacity (A7W35) | 16 kW | COP | 4.53 |
| Cooling capacity (A35W7) | 14 kW | EER | 3.14 |
| DHW (A20W55) | 18 kW | COP | 4.4 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R32 | Max Input Power | 7.7 |
| Power Supply | 220-240V～ / 50Hz | Max Current （A） | 32 |
| Water flow (m³/h) | 3.1 | Water Port Size | DN25 |
| Pressure Loss（kPa） | 35 | Noise (dB（A)) | ≤56 |
| Dimension (W×D×H) | 1040*445*1350 mm | Packing Dimension (W×D×H) | 1160*520*1500 mm |
| N.W.( kg) | 120 | G.W.( kg) | 140 |
| Note: Due to product improvement, above datas are subject to change without prior notice, please take the name plate as standard. | |||
Details
Heating&Cooling&DHW 3 In 1
Cooling in summer, heating in winter, optional wind panel, floor heating, domestic hot water, etc. at the end,
convenient and flexible R32 full DC inverter EVI heat pump for higher efficient house heating/cooling and domestic hot water.
High Efficiency A+++ Energy Level
Targeting the European market, 3VF+ Series Air to Water Heat Pump is specially developed with the most cutting-edge heat
pump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does 3VF+
series use R32 Refrigerant and full DC Inverter EVI technology, but also be rated with A+++ energy label. With top energy
rating A+++ , the unit is currently most energy efficient and can greatly reduce energy bills for customers.
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment.
During operation, the speed of the compressor and fan can be automatically and intelligently adjusted according to
the actual load demand of the user, so as to reduce the energy consumption of the compressor and fan , so that the
unit operates at the optimal level and achieves the energy saving purpose of on-demand output
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment.
During operation, the speed of the compressor and fan can be automatically and intelligently adjusted according to
the actual load demand of the user, so as to reduce the energy consumption of the compressor and fan ,
so that the unit operates at the optimal level and achieves the energy saving purpose of on-demand output.
R32 refrigerant, energy saving and environmental protection
R32 contributes greatly to the environment protection since R32 has a low GWP of 675 which is just 32% of R410A.
In the same heat pump system, with lower liquid density, the charge amount of R32 is less than that of R410A,
which brings in higher economic efficiency. The heat needed to evaporate R32 is greater than that of R410A so
that the required mass flow rate per unit is smaller and the COP is higher. We not only take care of your family
but also contribute to protecting the earth.
40dB(A) Quiet Running
Thanks to the unique soundproof internal structure, the sound pressure of this type of Air to Water Heat Pump
is kept to as low as 40dB(A) at 1 meter distance (Min. Flow).
Stable Running at -35°C
Stable Running at -35°C Ambient Temperature
Under low ambient Temperature, the performance of normal heat pumps will be limited. First, the heating ability,
the lower the ambient temperature, the weaker the heating ability. Second, reliability, low temperature environment
will affect the stability of the machine and operation reliability. Third, the operating width and safety range will
affect the performance of the heat pump.Thanks to the unique Inverter EVI technology, 3VF+ can operate efficiently
at -35°C, maintain high COP and reliable stability.
Controller with WIFI to realize APP remote setting. Convenient for installation and maintenance.
Independent intelligent remote control, online self-diagnosis function
- Remotely view the temperature and water level of the water tank and other parameter curve records and query,
and control the water level and water temperature at the same time;
- Remote control of pipeline circulation, return water, antifreeze, defrost, etc.;
- Remotely monitor the working status, current, voltage, protection status and working mode of the pump set;
- Remotely switch the control mode of the water pump, and remotely/manually/automatically control the start
and stop of the pump group;
- Fault information early warning and display, support various monitoring information, control information, alarm
information, operation information storage and historical record query.
Automatic defrost mode + anti-secondary long ice technology
The outdoor unit adopts outdoor temperature sensor and heat exchanger temperature sensor to perform variable-parameter
defrosting and accurately grasp the defrosting timing, which effectively solves the problem of "no defrosting when there is
frost, but defrosting without frost", and the amount of frost per unit time is significantly reduced. Only 1/3 of the normal defrost
mode.
At the same time, with the unique anti-secondary long-ice technology of AIROSD, it can ensure that there is no frost at the
bottom of the outdoor heat exchanger during heating in winter, and at the same time, the ice-water mixture left along the fins
can be fully heated to a liquid state during defrosting. It is drained through the bottom drain hole to avoid poor heating effect
caused by the accumulation of frost at the bottom.
