Description

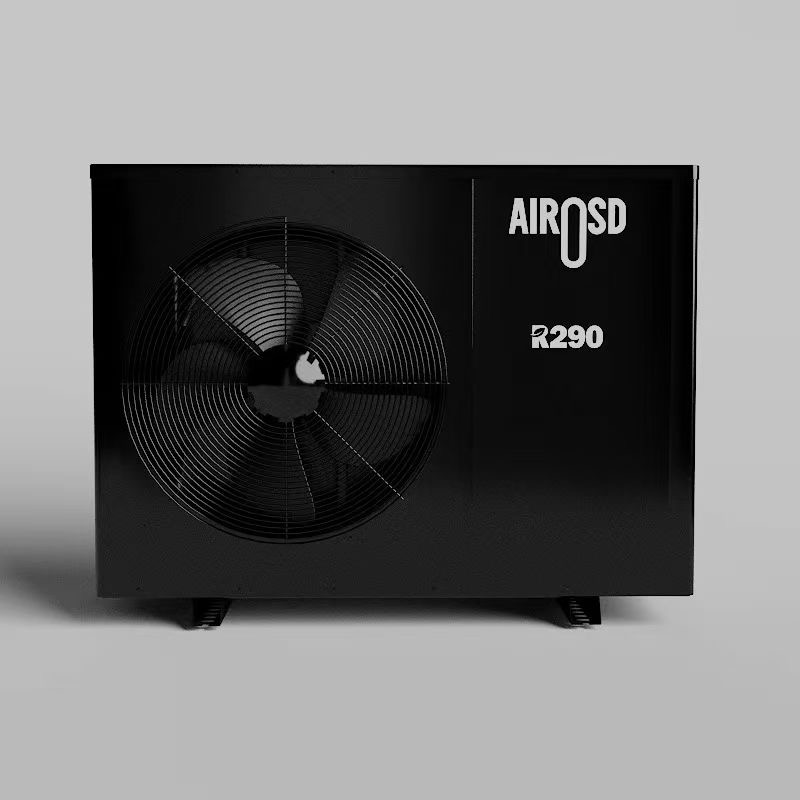

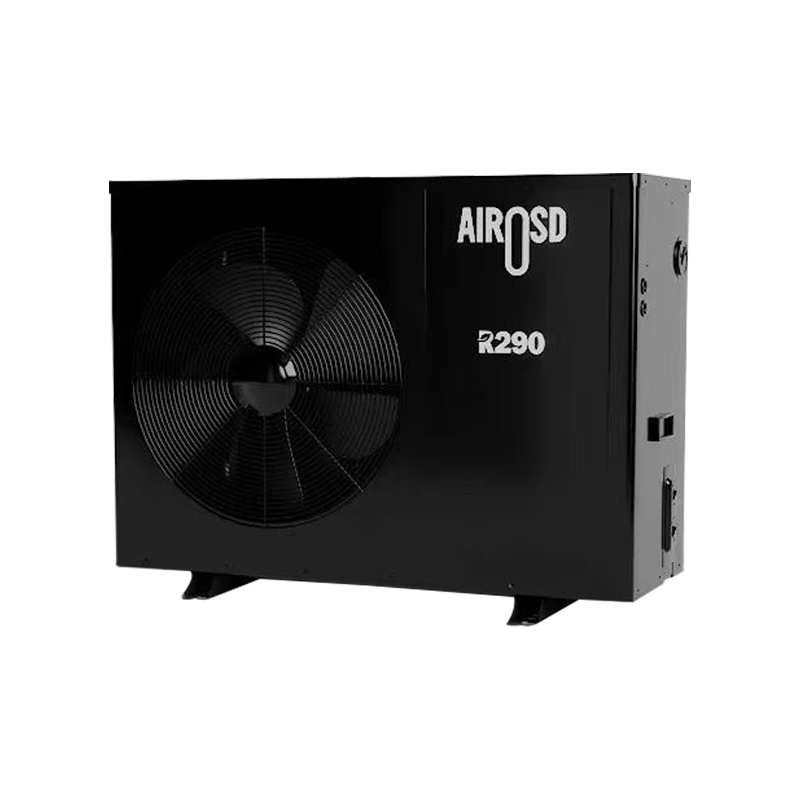

The CE R290 6KW DC Inverter Heating Cooling DHW Heat Pump is a versatile and energy-efficient solution designed to meet the heating, cooling, and domestic hot water (DHW) needs of modern homes. With its
advanced DC inverter technology and eco-friendly R290 refrigerant, this heat pump offers exceptional performance, energy savings, and environmental sustainability, making it an ideal choice for year-round
home climate control.
Parameter
| QBKFXFC-007SBI | |||
| Heating Capacity (A7W30-35) kW | 2.43～7.33 | COP | 4.13～5.21 |
| Cooling capacity (A35W7) kW | 2.03～5.35 | EER | 2.71～3.43 |
| DHW (A20W15-55) kW | 2.92～8.72 | COP | 4.2～5.19 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R290 | Max. Input Power | 3.7 kW |
| Power Supply | 220V-240 / 50Hz | Max. current | 17 A |
| Water Flow Rate (m³/h) | 1.2 | Ambient Temp. Range | -30～45 |
| Diameter of pipe (mm) | DN25 | Sound pressure level at 3 meters | ≤30.5 dB（A) |
| Dimension (W×D×H) | 1180×510×710 mm | Packing Dimension (W×D×H) | 1220×580×840 mm |
| N.W.( kg) | 75 | G.W.( kg) | 95 |
| Note： 1. Heating A7W35 condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 30°C, outlet water temperature 35°C; 2. Heating A7W45condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 40°C, outlet water temperature 45°C; 3. Rated cooling condition: (DB/WB)=35°C, inlet water temperature 12°C, outlet water temperature 7°C; 4. DHW Heating capacity conditions : (DB/WB) =20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. | |||
Advanced DC Inverter Technology
This heat pump system for home utilizes state-of-the-art DC inverter technology, which allows the system to adjust its output according to the real-time demand for heating, cooling, or hot water. The inverter technology
ensures that the heat pump operates at optimal efficiency, reducing energy consumption and providing precise temperature control. Whether you need to heat your home during the winter, cool it in the summer, or produce
hot water year-round, the DC inverter ensures consistent and reliable performance.
Comprehensive Heating, Cooling, and DHW Solution
The CE R290 6KW DC Inverter Heat Pump is designed as a comprehensive solution for home climate control, offering heating, cooling, and DHW functions in a single, compact unit. This all-in-one system simplifies
installation and reduces the need for multiple appliances, making it a convenient and cost-effective option for homeowners. The ability to seamlessly switch between modes means that your home remains comfortable
and well-supplied with hot water throughout the year.
Energy Efficient Electric Heat Pumps
Energy efficiency is a key feature of this heat pump, which is engineered to minimize energy consumption while maximizing output. The use of the R290 refrigerant, known for its low global warming potential (GWP),
further enhances the system's environmental performance. As an energy-efficient electric heat pump, this unit not only reduces your carbon footprint but also helps lower your utility bills, making it an economically smart
choice for home heating and cooling.
Versatile Air Conditioner to Heat Pump Transition
The CE R290 6KW DC Inverter Heat Pump functions both as an air conditioner and a heat pump, offering seamless transitions between cooling and heating modes. This versatility makes it ideal for regions with
varying climates, where both heating and cooling are necessary throughout the year. The system’s ability to function as both an air conditioner and a heat pump eliminates the need for separate units, providing a streamlined
and efficient solution for home comfort.
Aircon and Heater in One
This unit serves as an aircon and heater in one, offering the dual benefits of cooling in the summer and heating in the winter. The integrated design simplifies home climate control, allowing you to maintain the perfect indoor
temperature year-round with just one system. This combination of functions not only saves space but also reduces installation and maintenance costs, making it an excellent investment for any home.Environmentally
Friendly and SustainableThe use of R290 refrigerant in this heat pump underscores its commitment to environmental sustainability. R290 is a natural refrigerant with a low GWP, making it a more environmentally friendly
choice compared to traditional refrigerants. By choosing this heat pump, homeowners can enjoy modern climate control while minimizing their impact on the environment.
User-Friendly Controls and Operation
The CE R290 6KW DC Inverter Heat Pump is equipped with an intuitive control system that makes it easy to manage allaspects of heating, cooling, and DHW production. The user-friendly interface allows for simple
adjustments to temperature settings and mode changes, ensuring that your home remains comfortable with minimal effort. The system also includes smart features that optimize performance based on real-time conditions,
further enhancing efficiency and user experience.
Durable and Reliable Performance
Built with high-quality materials and cutting-edge engineering, this heat pump is designed for long-lasting performance. Its robust construction ensures reliable operation even under demanding conditions, making it a
durable choice for home heating and cooling. The system’s efficient design also contributes to its longevity, providing homeowners with a reliable and sustainable solution for years to come.
