Description

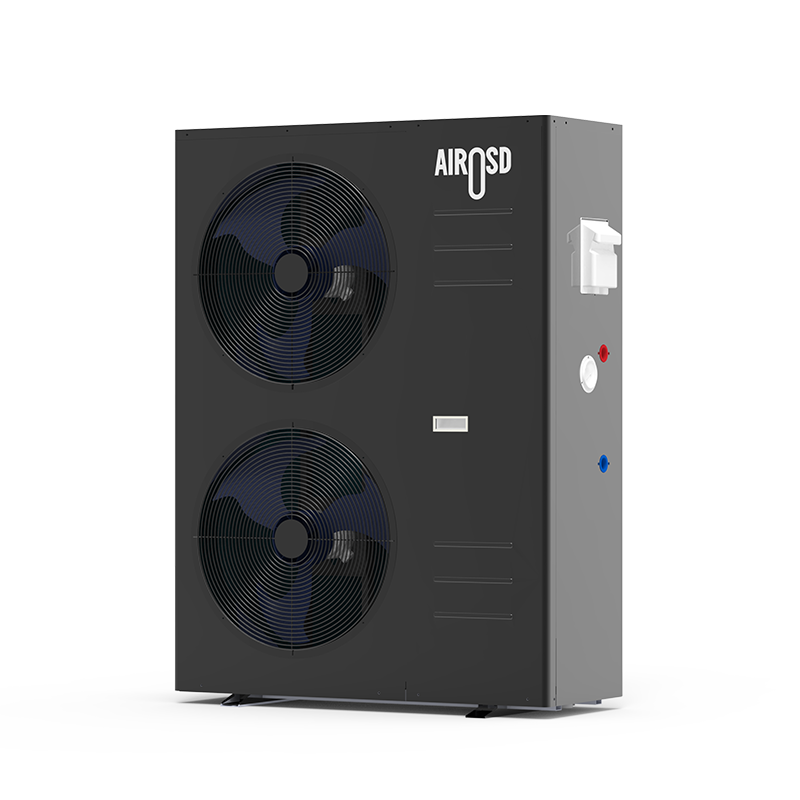

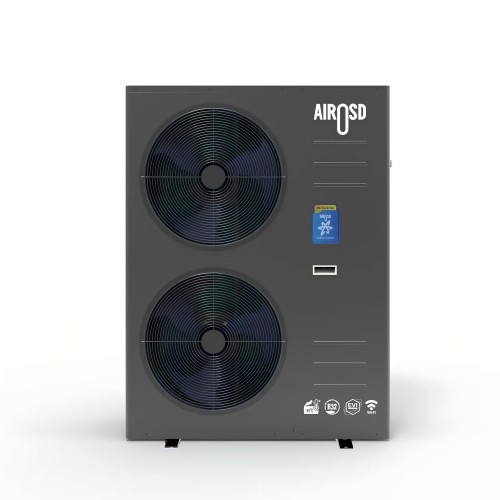

The CE EVI R32 24KW AC Heater Heat Pump is a state-of-the-art climate control system designed to deliver exceptional heating and cooling performance for a variety of applications. This advanced heat pump integrates innovative technology to provide efficient and reliable temperature management, making it an ideal choice for both residential and commercial environments. With its powerful 24KW capacity and eco-friendly R32 refrigerant, this system ensures optimal comfort and energy efficiency throughout the year.
The CE EVI R32 24KW AC Heater Heat Pump employs advanced technology to offer comprehensive heating and cooling solutions. As a central heat and air heat pump, it is engineered to provide both heating and cooling from a single unit, simplifying climate control and reducing the need for separate systems. The heat pump operates by transferring thermal energy between the indoor and outdoor environments, effectively managing indoor temperatures regardless of external weather conditions. This dual functionality ensures consistent comfort year-round, making it a versatile solution for various settings.
With a robust 24KW capacity, the CE EVI R32 heat pump is well-suited for central heating and cooling applications. Its powerful performance makes it ideal for managing the climate in larger homes, commercial spaces, and industrial facilities. The system’s ability to deliver both heating and cooling efficiently eliminates the need for multiple systems, streamlining installation and reducing operational costs. By providing reliable temperature control across a wide range of conditions, this heat pump enhances overall comfort and energy efficiency.
The CE EVI R32 24KW heat pump stands out for its efficiency and versatility. Designed to handle both heating and cooling tasks, this system uses cutting-edge heat pump technology to optimize performance and reduce energy consumption. The heat pump’s advanced design ensures that it operates efficiently, delivering consistent heating and cooling while minimizing energy usage. This efficiency translates into lower utility bills and a reduced environmental impact, making it a cost-effective and sustainable choice for climate control.
As a central heat and air heat pump, the CE EVI R32 system offers a range of features designed to enhance performance and user convenience. The system integrates seamlessly with existing HVAC infrastructure, providing comprehensive climate control with minimal disruption. The user-friendly control panel allows for easy adjustment of heating and cooling settings, ensuring that users can tailor the system to their specific needs. Additionally, the system’s advanced controls offer real-time monitoring and diagnostic tools, making it simple to manage and maintain optimal performance.
The CE EVI R32 heat pump is designed to meet the diverse needs of various applications. Its ability to provide both heating and cooling makes it a versatile choice for different environments, including residential homes, commercial buildings, and industrial spaces. The system’s adaptability ensures that it can effectively manage temperature control across a range of settings, offering reliable performance and comfort throughout the year.
The CE EVI R32 heat pump features a user-friendly control interface that simplifies operation and management. The intuitive controls allow users to easily set and adjust heating and cooling parameters, ensuring optimal comfort and efficiency. Real-time feedback and diagnostic tools provide valuable insights into system performance, making it easier to monitor and maintain the system. This user-friendly design enhances overall convenience and ensures that the heat pump operates at its best.
The CE EVI R32 24KW heat pump is designed for straightforward installation and minimal maintenance. Its modular components and flexible design facilitate easy integration into existing HVAC setups. Professional installation ensures that the system is configured for optimal performance, while minimal maintenance requirements contribute to its overall cost-effectiveness and longevity. Regular checks and routine servicing help maintain the system’s efficiency and reliability over time.
Parameter
| QBKFXFC-024SRII | |||
| Heating Capacity (A7W35) | 26.55 kW | COP | 5.22 |
| Cooling capacity (A35W7) | 20 kW | EER | 3.42 |
| DHW (A20W55) | 13.81 kW | COP | 5.25 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R32 | Max Input Power | 12 |
| Power Supply | 380-415V 3N～ / 50Hz | Max Current | 20 A |
| Water flow (m³/h) | 4.13 | Water Port Size | DN32 |
| Pressure Loss（kPa） | 40 | Sound pressure level at 3 meters | ≤38.5 dB（A) |
| Dimension (W×D×H) | 1140*455*1580 mm | Packing Dimension (W×D×H) | 1240×580×1720 mm |
| N.W.( kg) | 180 | G.W.( kg) | 204 |
| Note: Due to product improvement, above datas are subject to change without prior notice, please take the name plate as standard. | |||
Details
Heating & Cooling & DHW 3 In 1
Cooling in summer, heating in winter, optional wind panel, floor heating, domestic hot water, etc. at the end,
convenient and flexible R32 full DC inverter EVI heat pump for higher efficient house heating/cooling and domestic hot water.
High Efficiency A+++ Energy Level
Targeting the European market, 3VF+ Series Air to Water Heat Pump is specially developed with the most cutting-edge heat
pump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does 3VF+
series use R32 Refrigerant and full DC Inverter EVI technology, but also be rated with A+++ energy label. With top energy
rating A+++ , the unit is currently most energy efficient and can greatly reduce energy bills for customers.
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment.
uring operation, the speed of the compressor and fan can be automatically and intelligently adjusted according to the
actual load demand of the user, so as to reduce the energy consumption of the compressor and fan , so that the unit
operates at the optimal level and achieves the energy saving purpose of on-demand output
R32 refrigerant, energy saving and environmental protection
R32 contributes greatly to the environment protection since R32 has a low GWP of 675 which is just 32% of R410A.
In the same heat pump system, with lower liquid density, the charge amount of R32 is less than that of R410A,
which brings in higher economic efficiency. The heat needed to evaporate R32 is greater than that of R410A so
that the required mass flow rate per unit is smaller and the COP is higher. We not only take care of your family
but also contribute to protecting the earth.
40dB(A) Quiet Running
Thanks to the unique soundproof internal structure, the sound pressure of this type of Air to Water Heat Pump is kept to as low
as 40dB(A) at 1 meter distance (Min. Flow).
Stable Running at -35°C
Stable Running at -35°C Ambient Temperature
Under low ambient Temperature, the performance of normal heat pumps will be limited. First, the heating ability,
the lower the ambient temperature, the weaker the heating ability. Second, reliability, low temperature environment
will affect the stability of the machine and operation reliability. Third, the operating width and safety range will
affect the performance of the heat pump. Thanks to the unique Inverter EVI technology, 3VF+ can operate
efficiently at -35°C, maintain high COP and reliable stability.
Controller with WIFI to realize APP remote setting. Convenient for installation and maintenance.
Independent intelligent remote control, online self-diagnosis function
- Remotely view the temperature and water level of the water tank and other parameter curve records and query,
and control the water level and water temperature at the same time;
- Remote control of pipeline circulation, return water, antifreeze, defrost, etc.;
- Remotely monitor the working status, current, voltage, protection status and working mode of the pump set;
- Remotely switch the control mode of the water pump, and remotely/manually/automatically control the start
and stop of the pump group;
- Fault information early warning and display, support various monitoring information, control information, alarm
information, operation information storage and historical record query.
Automatic defrost mode + anti-secondary long ice technology
The outdoor unit adopts outdoor temperature sensor and heat exchanger temperature sensor to perform variable-parameter
defrosting and accurately grasp the defrosting timing, which effectively solves the problem of "no defrosting when there is
frost, but defrosting without frost", and the amount of frost per unit time is significantly reduced. Only 1/3 of the normal defrost
mode.
At the same time, with the unique anti-secondary long-ice technology of AIROSD, it can ensure that there is no frost at the
bottom of the outdoor heat exchanger during heating in winter, and at the same time, the ice-water mixture left along the fins
can be fully heated to a liquid state during defrosting. It is drained through the bottom drain hole to avoid poor heating effect
caused by the accumulation of frost at the bottom.
