Description

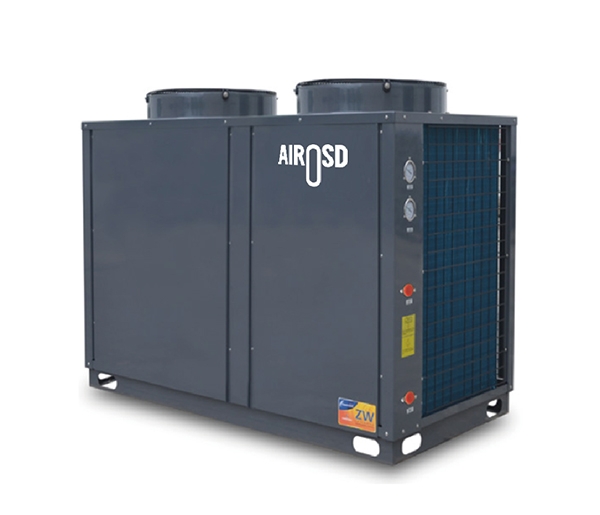

The 36KW Energy Efficient Heat Pump Water Heater offers an advanced and sustainable solution for heating water in residential, commercial, and industrial settings. Air source heat pump hot water is designed to deliver high performance while significantly reducing energy consumption, making it an ideal choice for those looking to lower their environmental footprint and save on utility bills. Equipped with cutting-edge technology,small heat pump water heater efficiently harnesses ambient air to provide consistent and reliable hot water.
At the heart of the 36KW Energy Efficient Heat Pump Water Heater is its innovative technology that sets it apart from traditional water heating systems. Air source heat pump hot water utilizes a high-capacity heat pump that extracts heat from the surrounding air and transfers it to the water, ensuring an energy-efficient heating process. Unlike conventional water heaters that rely on electric resistance or gas burners, this heat pump system can deliver the same amount of hot water with much less energy, making it a highly efficient and environmentally friendly option.

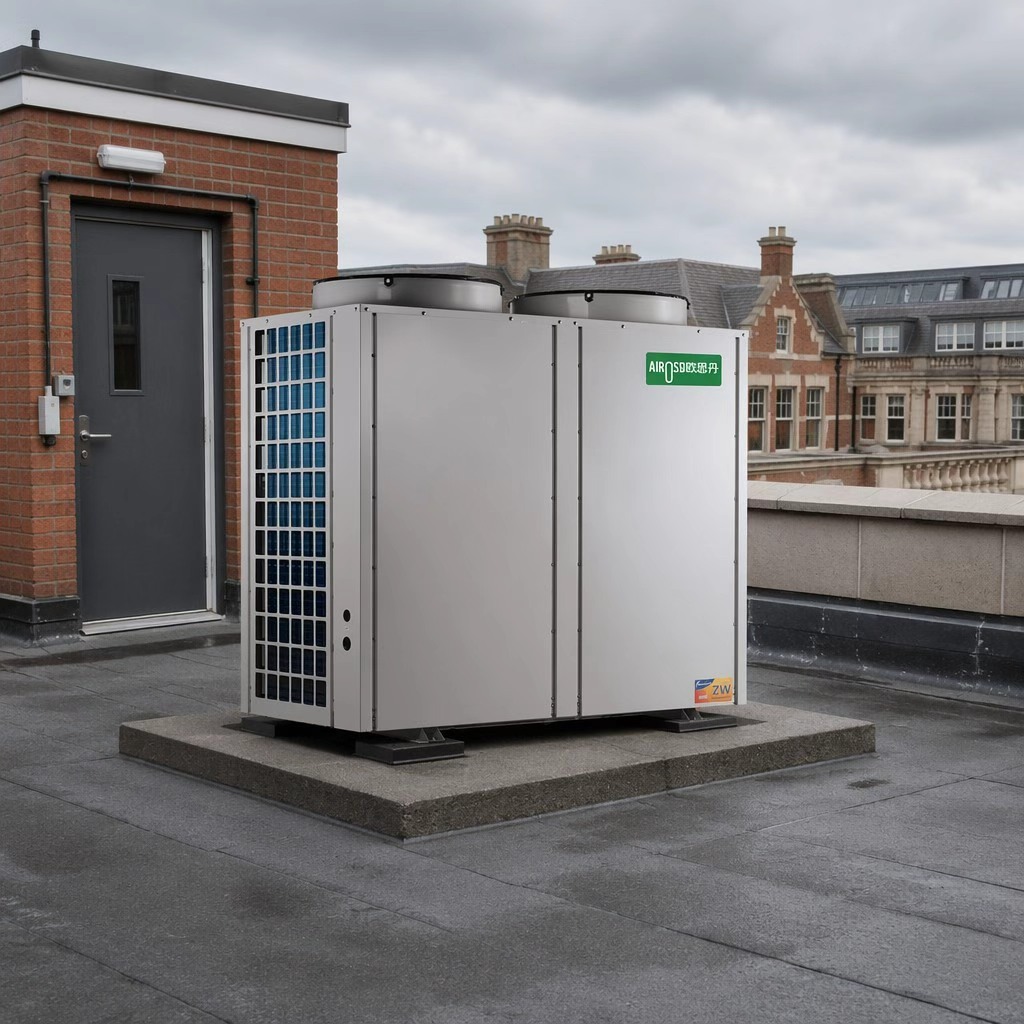

The 36KW system is also available as a ducted heat pump water heater, offering additional flexibility in installation and application. The ducted design allows the heat pump to be connected to an air distribution system, enabling it to draw heat from different areas or even outside the building. This feature is particularly beneficial in larger residential homes, commercial buildings, and industrial facilities where centralized heating is essential. By utilizing a ducted system, the heat pump can efficiently distribute heat throughout the space, ensuring consistent and even hot water availability.
Energy efficient heat pump water heater is a prime example of air to water heating technology, which has become increasingly popular due to its energy efficiency and sustainability. The 36KW Energy Efficient Heat Pump Water Heater efficiently converts ambient air into hot water, reducing the need for traditional fossil fuels and significantly lowering carbon emissions. Energy efficient heat pump water heater makes it an ideal solution for those looking to adopt greener technologies without compromising on performance.
Despite its impressive 36KW capacity, this heat pump water heater boasts a compact and space-saving design, making it suitable for a wide range of installations, including those with limited space. The small heat pump water heater is designed to fit into tighter areas while still delivering robust performance, ensuring that even small homes or businesses can benefit from energy-efficient hot water. Its compact size does not compromise its ability to produce a significant amount of hot water, making it a powerful solution for both residential and commercial applications.
The 36KW Energy Efficient Heat Pump Water Heater is an air source heat pump hot water system that offers superior efficiency compared to conventional heating methods. By drawing heat from the air, small heat pump water heater can provide a constant supply of hot water without the high energy costs associated with electric or gas water heaters. Small heat pump water heater also ensures that the system can operate efficiently in a variety of climates, from mild to colder environments, making it a versatile choice for homeowners and businesses alike.
One of the key benefits of the 36KW Energy Efficient Heat Pump Water Heater is its eco-friendly operation. By using renewable energy sources, such as ambient air, the system significantly reduces greenhouse gas emissions, contributing to a more sustainable future. Additionally, the energy efficiency of this heat pump water heater translates to lower operating costs, providing substantial savings on utility bills over time. The long lifespan of the system further enhances its cost-effectiveness, offering a reliable hot water solution with minimal maintenance requirements.
Parameter
| KFXR-036URII | |||
| Heating mode | Circulating | Brand | Panasonic |
| Ambient temp. range | -15℃~+43℃ | Refrigerant | R32 |
| Rated heating capacity | 36kW | Max. temp. outlet water | 60℃ |
| COP | 4.2 | Circulating waterpipe nozzle | G1.5'' Internal thread |
| Rated power input | 8.57kW | Outlet nozzle | G1.5'' Internal thread |
| Max. running current | 24.8A | Circulating water flow | 6.2m³/h |
| Power supply | 380v 3N~50Hz | Noise | 59dB/(A) |
| Dimension (W×D×H) | 1500*690*1070 | Packing Dimension (W×D×H) | 1590*780*1220 |
| N.W. | 290KG | G.W. | 320KG |
| Remarks: 1. Test conditions: (DB/WB) 20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C. 2. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. 3. The heat pump system is suitable for city water that meets the national standard. If use groundwater, well water, etc., it must be treated to reach the national standard tap water quality before use. If the water quality is poor, install a filter and water processor. | |||
Details
.png)
Commercial Central Hot Water Solutions
AIROSD provides one-stop central hot water solutions for commercial offices, hotels, factories, hospitals, and schools, and the series of ducted heat pump water heaters can be used together to meet the central hot water needs
of different buildings.
.png)
Branded accessories Stable performance
Copeland scroll compressor, quiet and high efficiency. High efficiency heat exchanger. Schneider electrical components. Intelligent controlling system. Intelligent EE valve, excellent efficiency at different
ambient temp. Automatically defrosting. Easy installation and LCD operation.
.png)
Safe and reliable
Ducted heat pump water heater absorbs a lot of energy from the air, COP>4.0, energy saving 75%.Adopting the large insulated water tank for 24h hot water supplies.Central hot water system can meet the multi-point hot
water requirement at the same time.
.png)
How heat pumps work
Air source heat pump hot water can work normally at -15℃, transferring the air heat source above -15℃ in the air to the air generator causing the heat generated by the refrigerant in the air exchanger to heat up and
vaporize to be released into the water, causing the water temperature to rise. Air source heat pump hot water is currently one of the world's highest energy efficiency ratio of hot water equipment.
.png)
Widely choose for heating capacity
Working ambient temperature down to - 15 ° C, Air source heat pump hot water unit will be not affected by wind, rain, thunder and snow weather.
.png)
Automatic defrost mode + anti-secondary long ice technology
Small heat pump water heater adopts outdoor temperature sensor and heat exchanger temperature sensor to perform variable-parameter defrosting and accurately grasp the defrosting timing, whicheffectively solves the problem of "no defrosting when there is frost,but defrosting without frost", and the amount of frost perunit time is significantly reduced. Only 1/3 of the normal defrost mode. At the same time.with the
unigue anti-secondary long-ice technology of AlROSD. It can ensure that there is no frost at the bottom of the outdoor heat exchanger during heating in winter, and at the same time, the ice-water mixture left along the fins can be fully heated to a liquid state during defrosting. It is drained through the bottom drain hole to avoid poor heating effect caused by the accumulation of frost at the bottom.
